Hitachi Excavators… Building Australia

Japanese Innovation

World-Renowned for Being the Toughest Excavators Around

Hitachi’s large range of excavators are world-renowned for being the toughest excavators around, that deliver top performance, versatility and fuel efficiency – guaranteed. They can withstand the most severe working conditions and always guarantee optimum productivity. You’ll also love the latest safety and technology features that will make your excavator the envy of your competitors.

Excavator Family

Our excavators are guaranteed to provide world-class performance, sophisticated design and legendary reliability.

View the range

Find your Hitachi Excavator

Mini Excavator /

ZX17U-5

The smallest in the mini excavator range, Hitachi’s ZAXIS17U-5, is the epitome of agile, efficient production on account of its compact size and phenomenal power. Operator comfort and high performance of this Hitachi mini excavator, makes it unbeatable in price and performance. The innovative design and robust parts that are used, ensure Hitachi has lived up to it’s name of providing industry-leading mini excavators to suit any job or project.

  • 1,933kg Operating Weight
  • 3,833mm Reach
  • 980 - 1280mm Width
Mini Excavator / ZX17U-5
Model: 3TNV70
Net Power: 10.6 kW at 2,400 Rpm
Displacement: 0.854 L
No Of Cylinders: 3
Max Torque: 48.8 Nm
Factory Bi-direction auxiliary piping
Main Pumps: 2 Variable Displacement Axial Piston Pumps
Main pumps Maximum oil flow: 2 x 19.2 L/min, 1 x 10.8 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 1 x 6.5 L/min
Hydraulic cylinders: High strength piston rods and tubes.
High torque, orbit motor
Swing circle: Single-row, shear type ball bearing with induction-hardened internal gear
Swing speed: 9.4 rpm.
Tractor type undercarriage: Strong welded track frame – side frame extended by cylinder span.
Rollers on each side: 3 lower
Travel device: High torque, 2 speed axial piston motor through planetary reduction gear.
Travel speeds (rubber): 0 to 2.4km/h (low), 0 to 4.2km/h (high).
Gradeability: 25º (47%) continuous.

Boom: 1.82m

  • 3 Pillar canopy with ROPS/TOPS (OPG Level 1)
  • Mechanical suspension vinyl seat with seat belt
  • Superb comfort, accessibility and visibility
  • Hydraulic pilot control levers for all operations
  • Lockable engine enclosure and fuel fills
  • Grease Gun
  • Dozer blade
  • Operating weight: 1,880kg approx includes heavier counterweight of 240kg
  • 2-way control lever pattern selector valve (excavator/backhoe loader)
  • Travel motion alarm
  • 12V outlet
  • Rotating beacon magnetic
  • Ten key theft deterrent system
  • Dust proof indoor net (cooling system)
Mini Excavator /

ZX26U-5

The Hitachi ZAXIS26U-5 mini excavator, is the second smallest machine in the mini excavator range. It’s an epitome of agile and efficient production on account of its compact size and productive. The round body is smart and its wide-opening covers provide direct access to service points for quick maintenance. The operator station is full of easy-to-use controls, an informative monitor, and a comfortable operator seat. The ZAXIS26U-5 is ready to get the job done on various job sites.

  • 2,721kg Operating Weight
  • 4,675mm Reach
  • 1,500mm Width
Mini Excavator / ZX26U-5
Model: Yanmar 3TNV76
Net Power: 14.5kW at 2,500 Rpm
Displacement: 1.115L
No Of Cylinders: 3
Max Torque: 64.1 Nm
Main Pumps: 2 Variable Displacement Axial Piston Pumps
Main pumps Maximum oil flow: 2 x 30.0 L/min, 1 x 16.3 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 1 x 6.8 L/min
Hydraulic Cylinders: High Strength Piston Rods And Tubes
High Torque, Axial Piston Motor With Planetary Reduction Gear
Swing Circle: Single-Row, Shear Type Ball Bearing With Induction-Hardened Internal Gear
Swing Parking Brake: Spring Set / Hydraulic Released Disc Type
Swing Speed: 9.1 rpm
Tractor Type Undercarriage: Strong Welded Track Frame – Side Frame Welded To Track Frame
Rollers On Each Side: 1 Upper, 4 Lower
Travel Device: High Torque, 2 Speed Axial Piston Motor Through Planetary Reduction Gear
Travel Speeds (Rubber): 0 to 2.9 km/h (Low), 0 to 4.5 km/h (High)
Gradeability: 25º (47%) Continuous
Boom: 2.10m
Bi-Direction Auxiliary Piping
  • 4 Pillar Canopy (ROPS / OPG (TOP GUARD) )
  • Mechanical Suspension Vinyl Seat With Seat Belt
  • Superb Comfort, Accessibility And Visibility
  • Hydraulic Pilot Control Levers For All Operations With Proportional Switch for Auxiliary Piping
  • Lockable engine enclosure and fuel fills.
  • Grease Gun
  • Dozer Blade
  • Operating Weight: 2,630kg approx includes additional Counterweight 240kg
  • Short Rear-End Swing Radius For Improved Operating Capabilities
  • 2-Way Control Lever Pattern Selector Valve (Excavator/Backhoe loader)
  • Travel Motion Alarm
  • 12V Outlet
  • Ten key theft deterrent system
  • Dust proof indoor net (cooling system)
Mini Excavator /

ZX33U-5

The Hitachi ZX33U-5 mini excavator is a mid-sized machine in the Hitachi’s mini excavator range. Suitable for working on such projects as earthmoving, utilities and general construction, particularly where space is limited – they are fast, powerful and fuel-efficient. They are also extremely durable, thanks to several new design features, which have been incorporated by Hitachi to ensure that they provide an outstanding level of performance on any job site. The ZAXIS 33U mini excavator delivers excellent levels of availability, allowing you to bring every task to a satisfying conclusion – on time and on budget.

  • 3,487kg Operating Weight
  • 4,959mm Reach
  • 1,550mm Width
Mini Excavator / ZX33U-5
Model: Yanmar EDM-3TNV88
Type: 4-cycle water-cooled, direct injection
No. of cylinders: 3
Rated power ISO 9249, net: 21.2 kW (28.4 HP) at 2,400 min-1 (rpm)
Rated power EEC 80/1269, net: 21.2 kW (28.4 HP) at 2,400 min-1 (rpm)
Rated power SAE J1349, net: 21.2 kW (28.4 HP) at 2,400 min-1 (rpm)
Maximum torque: 105.5 Nm (10.8 kgfm) at 1,000 min-1 (rpm)
Piston displacement: 1.642 L
Bore and stroke: 88 mm x 90 mm
Batteries: 1 x 12 V / 55 Ah
Main pumps: 2 variable displacement axial piston pumps
Main pumps Maximum oil flow: 2 x 38.4 L/min, 1 x 22.8 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 10.8 L/min
Travel: 2 variable displacement axial piston motors
Swing: 1 axial piston motor
Implement circuit: 24.5 MPa (250 kgf/cm2)
Swing circuit: 16.7 MPa (170 kgf/cm2)
Travel circuit: 24.5 MPa (250 kgf/cm2)
Pilot circuit: 3.9 MPa (40 kgf/cm2)
Swing speed: 9.1 min-1 (rpm)
Swing torque: 5.1 kNm (520 kgfm)
Travel speeds:
  • High : 0 to 4.3 km/h
  • Low : 0 to 2.8 km/h
Maximum traction force:
  • 27 kN (2,750 kgf)
Gradeability:
  • 58% (30 degree) continuous
Fuel tank: 42.0 L
Engine coolant: 3.9 L
Engine oil: 7.2 L
Travel device (each side): 0.6 L
Hydraulic system: 56.0 L
Mini Excavator /

ZX38U-5

Hitachi’s mini excavator ZX38U-5 has been designed to provide an outstanding level of performance on any job site. Like all ZAXIS models, the ZX38U-5 mini excavator has been designed to deliver high productivity, reduced fuel and running costs. Suitable for working on such projects as construction, earthmoving and roadworks, particularly where space is limited. This mini excavator is very fast, powerful and nimble. The overall performance of your equipment depends on high levels of availability and productivity. Check out our range of other mini excavators, we believe that you will be able to enjoy a lower cost of ownership thanks to the durability of our ZAXIS mini excavators.

  • 3,946kg Operating Weight
  • 5,289mm Reach
  • 1,740mm Width
Mini Excavator / ZX38U-5
Model: Yanmar EDM-3TNV88
Type: 4-cycle water-cooled, direct injection
No. of cylinders: 3
Rated power ISO 9249, net: 21.2 kW (28.4 HP) at 2,400 min-1 (rpm)
Rated power EEC 80/1269, net: 21.2 kW (28.4 HP) at 2,400 min-1 (rpm)
Rated power SAE J1349, net: 21.2 kW (28.4 HP) at 2,400 min-1 (rpm)
Maximum torque: 105.5 Nm (10.8 kgfm) at 1,000 min-1 (rpm)
Piston displacement: 1.642 L
Bore and stroke: 88 mm x 90 mm
Batteries: 1 x 12 V / 55 Ah
Main pumps: 2 variable displacement axial piston pumps
Main pumps Maximum oil flow: 2 x 38.4 L/min, 1 x 22.8 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 10.8 L/min
Travel: 2 variable displacement axial piston motors
Swing: 1 axial piston motor
Implement circuit: 24.5 MPa (250 kgf/cm2)
Swing circuit: 18.6 MPa (190 kgf/cm2)
Travel circuit: 24.5 MPa (250 kgf/cm2)
Pilot circuit: 3.9 MPa (40 kgf/cm2)
Swing speed: 9.1 min-1 (rpm)
Swing torque: 6.0 kNm (610 kgfm)
Travel speeds:
  • High : 0 to 4.3 km/h
  • Low : 0 to 2.8 km/h
Maximum traction force
  • 27 kN (2 750 kgf)
Gradeability
  • 58% (30 degree) continuous
Fuel tank: 42.0 L
Engine coolant: 3.9 L
Engine oil: 7.2 L
Travel device (each side): 0.6 L
Hydraulic system: 56.0 L
Mini Excavator /

ZX48U-5

The Hitachi ZX48U-5 mini excavator has a spacious cab, that is big on the inside. Working on a variety of construction projects under the pressure of deadlines requires reliable and durable machines that help you to get the job done on time and within budget. The Hitachi ZAXIS mini excavators are extremely durable, thanks to a range of new and improved features. At Hitachi, we understand that you will spend the majority of your working day in the cab of a Hitachi ZAXIS mini excavator. Keeping that in mind, we have designed our equipment with the operator firmly in mind, so that you will feel less tired at the end of your day on the construction work site.

  • 4,916kg Operating Weight
  • 5,738mm Reach
  • 1,960mm Width
Mini Excavator / ZX48U-5
Model: 3TNV70
Net Power: 10.6 kW at 2,400 Rpm
Displacement: 0.854 L
No Of Cylinders: 3
Max Torque: 48.8 Nm
Factory Bi-direction auxiliary piping
Main pumps: 1 variable displacement axial piston pumps
Main pumps Maximum oil flow: 1 x 120 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 12.0 L/min
Hydraulic cylinders: High strength piston rods and tubes
High torque, orbit motor
Swing circle: Single-row, shear type ball bearing with induction-hardened internal gear
Swing speed: 9.4 rpm
Tractor type undercarriage: Strong welded track frame – side frame extended by cylinder span
Rollers on each side: 3 lower
Travel device: High torque, 2 speed axial piston motor through planetary reduction gear
Travel speeds (rubber): 0 to 2.4km/h (low), 0 to 4.2km/h (high)
Gradeability: 25º (47%) continuous.
Boom: 1.82m
  • 3 Pillar canopy with ROPS/TOPS (OPG Level 1)
  • Mechanical suspension vinyl seat with seat belt
  • Superb comfort, accessibility and visibility
  • Hydraulic pilot control levers for all operations
  • Lockable engine enclosure and fuel fills
  • Grease Gun
  • Dozer blade
  • Operating weight: 1,880kg approx includes heavier counterweight of 240kg
  • 2-way control lever pattern selector valve (excavator/backhoe loader)
  • Travel motion alarm
  • 12V outlet
  • Rotating beacon magnetic
  • Ten key theft deterrent system
  • Dust proof indoor net (cooling system)
Mini Excavator /

ZX55U-5

The Hitachi ZAXIS55U-5 is the second largest machine in the mini excavator range. It has excellent controllability, short rear-end swing design allows for safe, confident operation in tight work areas. Low fuel consumption, open-wide covers for easy maintenance, strong front attachment and sturdy upper structure. The sloped track frame tops for easy mud removal, curbing mud packing.

  • 5,270kg Operating Weight
  • 6,068mm Reach
  • 2,000mm Width
Mini Excavator / ZX55U-5
Model: Yanmar EDM-4TNV88
Type: 4-cycle water-cooled, direct injection
No. of cylinders: 4
Rated power ISO 9249, net: 28.2 kW (37.8 HP) at 2,400 min-1 (rpm)
Rated power EEC 80/1269, net: 28.2 kW (37.8 HP) at 2,400 min-1 (rpm)
Rated power SAE J1349, net: 28.2 kW (37.8 HP) at 2,400 min-1 (rpm)
Maximum torque: 139.6 Nm (14.2 kgfm) at 1,100 min-1 (rpm)
Piston displacement: 2.189 L
Bore and stroke: 88 mm x 90 mm
Batteries: 1 x 12 V / 72 Ah
Main pumps:1 variable displacement axial piston pumps
Main pumps Maximum oil flow: 1 x 120 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 12.0 L/min
Travel: 2 variable displacement axial piston motors
Swing: 1 axial piston motor
Implement circuit: 24.5 MPa (250 kgf/cm2)
Swing circuit: 18.3 MPa (187 kgf/cm2)
Travel circuit: 24.5 MPa (250 kgf/cm2)
Pilot circuit: 5.9 MPa (60.2 kgf/cm2)
Swing speed: 9.0 min-1 (rpm)
Swing torque: 8.6 kNm (877 kgfm)
Travel speeds:
  • High : 0 to 4.2 km/h
  • Low : 0 to 2.5 km/h
Maximum traction force:
  • 38.3 kN (3 905 kgf)
Gradeability
  • 58% (30 degree) continuous
Fuel tank: 70.0 L
Engine coolant: 4.7 L
Engine oil: 8.6 L
Travel device (each side): 0.9 L
Hydraulic system: 66.0 L
Mini Excavator /

ZX65USB-5

The Hitachi’s mini excavator ZX65USB-5 is the largest machine in the Hitachi mini range. The Hitachi mini excavators are renowned for durability while delivering high levels or productivity with reduced running costs. It’s compact design and round body with wide-opening covers, with spacious cab and enhanced visibility. For owners, it meets the need for efficiency and high quality; for operators, it provides a comfortable, safe working environment and is extremely user-friendly. Delivering excellent levels of availability, allowing you to bring every task to a satisfying conclusion – on time, on budget and to a high standard.

  • 6,597kg Operating Weight
  • 6,308mm Reach
  • 2,000mm Width
Mini Excavator / ZX65USB-5
Model: Yanmar 4TNV94L-ZWHB
Type: 4-cycle water-cooled, direct injection
No. of cylinders: 4
Rated power ISO 9249, net: 34.1 kW (45.7 HP) at 2,000 min-1 (rpm)
Rated power EEC 80/1269, net: 34.1 kW (45.7 HP) at 2,000 min-1 (rpm)
Rated power SAE J1349, net: 34.1 kW (45.7 HP) at 2,000 min-1 (rpm)
Maximum torque: 204 Nm (20.8 kgfm) at 1,000 min-1 (rpm)
Piston displacement: 3.053 L
Bore and stroke: 94 mm x 110 mm
Batteries: 1 x 12 V / 92 Ah
Main pumps:1 variable displacement axial piston pumps
Main pumps Maximum oil flow: 1 x 144 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 10.0 L/min
Travel: 2 variable displacement axial piston motors
Swing: 1 axial piston motor
Implement circuit: 24.5 MPa (250 kgf/cm2)
Swing circuit: 19.6 MPa (200 kgf/cm2)
Travel circuit: 25.7 MPa (262 kgf/cm2)
Pilot circuit: 3.9 MPa (40 kgf/cm2)
Swing speed: 9.5 min-1 (rpm)
Swing torque: 11.0 kNm (1 120 kgfm)
Travel speeds:
  • High : 0 to 4.8 km/h
  • Low : 0 to 2.9 km/h
Maximum traction force:
  • 39.8 kN (4,060 kgf)
Gradeability:
  • 58 % (30 degree) continuous
Fuel tank: 120.0 L
Engine coolant: 7.4 L
Engine oil: 11.2 L
Travel device (each side): 0.9 L
Hydraulic system: 108.0 L
Small Excavator /

ZX75US-7

The Hitachi ZX75US-7, featuring reduced tail swing, is ideal for tight spaces such as residential or congested areas, providing the power, smoothness, and ease of operation synonymous with larger Hitachi excavators in a compact design.

  • 8,340 – 8,880kg Operating Weight
  • 6,870mm Dig Reach
  • 2,260mm Width
Small Excavator / ZX75US-7
  • Engine Model: 4TNV98CT
  • Engine Type: 4-cycle water-cooled, common rail direct injection exhaust turbo charger
  • Aspiration: Cooled EGR
  • After-treatment: Muffler filter
  • No. of cylinders: 4
  • Rated power ISO 14396: 50.4 kW (67.6 HP) at 2 000 min-1
  • Maximum torque: 292.9 Nm (29.8 kgfm) at 1 300 min-1
  • Main pumps: 3 variable displacement axial piston pumps
  • Maximum oil flow main pump: 2 x 72 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 20 L/min
  • Bucket digging force ISO: 57.5 kN (1.62 m) / 57.5 kN (2.12 m)
  • Arm crowd force ISO: 40.2 kN (1.62 m) / 34.5 kN (2.12 m)
  • Shoe type: Grouser shoe, Pad crawler shoe
  • Shoe width: 450mm
  • Arm length: 1.62 – 2.12m
  • Monoblock weight: 8,340kg – 8,410kg
  • Monoblock pressure: 37kPa
  • Arm length: 1.62 – 2.12m
  • Max. digging reach: 6,380 – 6,870mm
  • Max. digging depth: 4,150 – 4,650mm
  • Max. dumping height: 5,080 – 5,480mm
  • Undercarriage length: 2,900mm
  • Undercarriage width: 2,200mm
  • Overall width of upperstructure: 2,260mm
  • Overall height of cab: 2,530mm
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Small Excavator /

ZX85USB-7

The compact Hitachi ZX85USB-7 perfect for confined areas such as residential or congested area, delivers the power, smoothness, and ease of operation characteristic of larger excavators.

  • 8,780 – 9,320kg Operating Weight
  • 7,560mm Dig Reach
  • 2,260mm Width
Small Excavator / ZX85USB-7
  • Engine Model: 4TNV98CT
  • Engine Type: 4-cycle water-cooled, common rail direct injection exhaust turbo charger
  • Aspiration: Cooled EGR
  • After-treatment: Muffler filter
  • No. of cylinders: 4
  • Rated power ISO 14396: 50.4 kW (67.6 HP) at 2 000 min-1
  • Maximum torque: 292.9 Nm (29.8 kgfm) at 1 300 min-1
  • Main pumps: 3 variable displacement axial piston pumps
  • Maximum oil flow main pump: 2 x 72 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 20 L/min
  • Bucket digging force ISO: 57.5 kN (1.62 m) / 57.5 kN (2.12 m)
  • Arm crowd force ISO: 40.2 kN (1.62 m) / 34.5 kN (2.12 m)
  • Shoe type: Grouser shoe, Pad crawler shoe
  • Shoe width: 450mm
  • Arm length: 1.62 – 2.12m
  • Monoblock weight: 8,780kg – 8,850kg
  • Monoblock pressure: 39kPa
  • Arm length: 1.62 – 2.12m
  • Max. digging reach: 7,140 – 7,560mm
  • Max. digging depth: 4,030 – 4,530mm
  • Max. dumping height: 4,870 – 5,120mm
  • Undercarriage length: 2,900mm
  • Undercarriage width: 2,200mm
  • Overall width of upperstructure: 2,260mm
  • Overall height of cab: 2,530mm
    • Global E service satellite communication
    • Tool kit
    • Operator manual
    • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
    • ConSite SHOT Daily inspection app and Web Portal
    • Owners Site Machine Telemetry Portal
    • ConSite Operational Reports and emergency notification e-mail
    • ConSite Pocket – Remote Monitoring app
Small Excavator

ZX75US-5

The Hitachi ZX75US-5  medium excavators is highly productive in tight spaces and the upper structure, swings rapidly or smooth in response to changing job requirements. When getting in the Hitachi cab, the operator will feel comfortable and confident. The seat and console are redesigned for easy operation and the operator does not feel confined through wide glass windows and door. A seat belt, pilot-controlled shutoff lever, swing parking brake, and travel parking brake are provided standard for safe operation. Neutral engine start feature enhances safety.

  • 8,181kg Operating Weight
  • 2,320mm Reach
  • 6,874mm Width
Small Excavator ZX75US-5
Model: Yanmar 4TNV94L (EU Stage III A)
Type: 4-cycle water-cooled, direct injection
Aspiration: Turbocharged, intercooled
No. of cylinders: 4
Rated power ISO 9249, net: 34.1 kW (45.7 HP) at 2,000 min-1 (rpm)
Rated power EEC 80/1269, net: 34.1 kW (45.7 HP) at 2,000 min-1 (rpm)
Rated power SAE J1349, net: 34.1 kW (45.7 HP) at 2,000 min-1 (rpm)
Maximum torque: 204.1 Nm (20.8 kgf m) at 1,000 min-1 (rpm)
Piston displacement: 3.053 L
Bore and stroke: 94 mm x 110 mm
Batteries: 2 x 12 V / 52 Ah
Main pumps: 3 variable displacement axial piston pumps
Main pumps Maximum oil flow: 2 x 72 L/min, 1 x 56 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 20.0 L/min
Travel: 2 variable displacement axial piston motors
Swing: 1 axial piston motor
Implement circuit: 26.0 MPa (265 kgf/cm2)
Swing circuit: 25.0 MPa (255 kgf/cm2)
Travel circuit: 31.4 MPa (320 kgf/cm2)
Pilot circuit: 3.9 MPa (40 kgf/cm2)
Implement levers: 2
Travel levers with pedals: 2
Swing speed: 10.5 min-1 (rpm)
Swing torque: 16.0 kNm (1 630 kgf m)
Fuel tank: 135 L
Engine coolant: 10.3 L
Engine oil: 12.1 L
Travel device (each side): 1.2 L
Hydraulic system: 100 L
Medium Excavator /

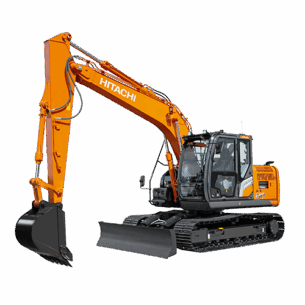

ZX130-5

Hitachi’s improved ZX130-5 delivers on five key levels: performance, productivity, comfort, durability and reliability. It provides fleet owners with a high-quality, efficient machine that can work effectively, even in challenging conditions. The ZX130-5 provides operators with a safer, user-friendly work space, and responds with speed precision. Easy maintenance features maximise machine availability and gets the job done on time, on budget and to a high standard.

  • 73.4kw Engine Rated Power
  • 0.45 - 0.59m3 Bucket Capacity
  • 12,800kg Operating Weight
Medium Excavator / ZX130-5
  • Model: Isuzu AM-4JJ1X
  • EU Stage IIIB / EPA Tier 4 Interim emission certified
  • Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: variable geometry turbocharged, intercooled, cooled EGR
  • Aftertreatment: muffler filter (DPF)
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 2 variable displacement axial piston pumps (2x 117L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame
  • Counterweight, heavy, 3,000kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, standard length
  • Track undercover
  • Track guard, 1
  • Shoes, triple grouser 500mm
  • Travel alarm
  • 4.60m monoblock boom
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 2.52m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, right lever
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global e-service, satellite communication
  • ConSite, operational reports and emergency notification e-mail
  • Tool kit
  • Spare filters, 1,000hrs
  • Operator manual
Medium Excavator /

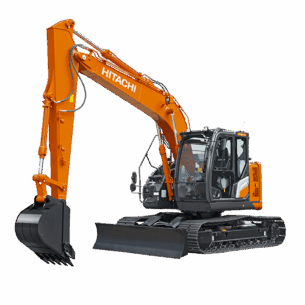

ZX135US-5

Hitachi’s improved short tail-swing ZX135US-5 delivers on five key levels: performance, productivity, comfort, durability and reliability. It provides fleet owners with a high-quality, efficient machine that can work effectively, even in challenging conditions. The ZX135US-5 provides operators with a safer, user- friendly work space, and responds with speed  precision. Easy maintenance features maximise machine availability and gets the job done on time, on budget and to a high standard.

  • 73.4kw Engine Rated Power
  • 0.45 - 0.59m3 Bucket Capacity
  • 14,400kg Operating Weight
Medium Excavator / ZX135US-5
  • Model: Isuzu AM-4JJ1X
  • EU Stage IIIB / EPA Tier 4 Interim emission certified
  • Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • Aftertreatment: Muffler filter (DPF)
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 2 variable displacement axial piston pumps (2x 117L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame, ultra short rear tail
  • Counterweight, 3,640kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, standard length
  • Track undercover
  • Track guard, 1
  • Shoes, triple grouser 500mm, bolt on provision
  • Travel alarm
  • Blade, bolt on cutting edge
  • 4.60m monoblock boom
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 2.52m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, right lever
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global e-service, satellite communication
  • ConSite, operational reports and emergency notification e-mail
  • Tool kit
  • Spare filters, 1,000hrs
  • Operator manual
Medium Excavator /

ZX160LC-5

Hitachi’s improved ZX160LC-5 delivers on five key levels: performance, productivity, comfort, durability and reliability. It provides fleet owners with a high-quality, efficient machine that can work effectively, even in challenging conditions. The ZX160LC-5 provides operators with a safer, user-friendly work space, and responds with speed precision. Easy maintenance features maximise machine availability and gets the job done on time, on budget and to a high standard.

  • 90.2kw Engine Rated Power
  • 0.52 - 0.82m3 Bucket Capacity
  • 16,600kg Operating Weight
Medium Excavator / ZX160LC-5
  • Model: Isuzu AM-4JJ1X
  • EU Stage IIIB / EPA Tier 4 Interim emission certified
  • Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • Aftertreatment: muffler filter (DPF)
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 2 variable displacement axial piston pumps (2x 191L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame
  • Counterweight, 3,200kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, long crawler
  • Track undercover
  • Track guard, 1
  • Shoes, triple grouser 500mm
  • Travel alarm
  • 5.10m monoblock boom
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 2.58m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, right lever
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global e-service, satellite communication
  • ConSite, operational reports and emergency notification e-mail
  • Tool kit
  • Spare filters, 1,000hrs
  • Operator manual
Medium Excavator /

ZX160-7

Expect the highest quality and guaranteed maximum uptime with the new Hitachi ZX160-7 medium excavator.

  • 101.3kw Engine Rated Power
  • 0.52 – 0.82m3 Bucket Capacity
  • 17,700 – 18,200kg Operating Weight
Medium Excavator / ZX160-7
  • Engine Model: Yanmar 4TN107
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Turbocharged, intercooled, cooled EGR
  • After-treatment:DOC and CSF and SCR system
  • No. of cylinders: 4
  • Rated power ISO 14396: 101.3 kW at 1 900 min-1
  • Maximum torque: 602 Nm at 1 500 min-1
  • Main pumps: 2 variable displacement axial piston pumps
  • Maximum oil flow main pump:2 x 190 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 31.9 L/min
  • Bucket digging force ISO: 112 kN
  • Arm crowd force ISO: 91 kN
  • Shoe type: Triple grouser
  • Shoe width: 500 – 700mm
  • Arm length: 2.58 m
  • Monoblock weight: 17,700kg – 18,200kg
  • Monoblock pressure: 38 – 51kPa
  • Arm length: 2.58m
  • Max. digging reach: 8,870mm
  • Max. digging depth: 5,980mm
  • Max. dumping height: 6,170mm
  • Undercarriage length: 3,920mm
  • Undercarriage width: 2,500mm
  • Overall width of upperstructure: 2,500mm
  • Overall height of cab: 3,130mm
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX200-5

The Hitachi ZX200-5 excavator with TRIAS hydraulics delivers on five key points including durability, productivity, performance, comfort, and reliability. Providing fleet owners with a high-quality and efficient machine in even the most challenging conditions. The ZX200-5 provides operators with a safer, user-friendly work space, with significantly reduced fuel consumption. The machines are fitted with ConSite OIL onboard monitoring technology which not only helps to reduce maintenance but also helps to extend the life of the machine for the long term.

  • 122kw Engine Rated Power
  • 0.80 - 1.10m3 Bucket Capacity
  • 20,300/20,800kg Operating Weight
Medium Excavator / ZX200-5
  • Model: Isuzu AM-4HK1X
  • EU Stage IIIB / EPA Tier 4 Interim emission certified
  • Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • Aftertreatment: muffler filter (DPF)
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 3 variable displacement axial piston pumps (2x 212L/min + 1x 189L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame
  • Counterweight, heavy, 4,250kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, standard length
  • Track undercover
  • Track guard, 1
  • Shoes, triple grouser 600mm
  • Travel alarm
  • 5.68m monoblock boom, heavy duty
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 2.91m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, right lever
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

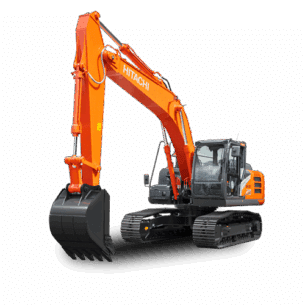

ZX200-7/ZX210LC-7

With the ZX210-7 / ZX210LC-7 medium excavator, you can expect the ultimate in operating comfort and safety, the highest quality, and reduced running costs. Its versatility, reliability and efficiency will have a direct impact on the success of your business.

  • 128.4kw Engine Rated Power
  • 0.51 - 1.20m3 Bucket Capacity
  • 21,300 / 21,900kg Operating Weight
Medium Excavator / ZX200-7/ZX210LC-7
Engine Model: Isuzu 4HK1X
Engine Type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
After-treatment: DOC+CSF+SCR system
No. of cylinders: 4
Rated power ISO 14396: 128.4 kW at 2,000 min-1
Maximum torque: 670 Nm at 1,600 min-1
Main pumps: 3 variable displacement axial piston pumps
Maximum oil flow main pump: 2 x 212 L/min
Pilot pump: 1 gear pump
Maximum oil flow pilot pump: 33.7 L/min



  • Bucket digging force ISO: 158kN (2.42 m) / 158 kN (2.91 m)
  • Arm crowd force ISO: 140kN (2.42 m) / 114kN (2.91 m)
  • Shoe type: Triple grouser
  • Shoe width: 600 – 800mm
  • Arm length: 2.42 – 2.91m
  • Monoblock weight: 21,300kg – 22,000kg (ZX200-7) / 21,900kg – 22,600kg (ZX210LC-7)
  • Monoblock pressure: 37 – 48kPa (ZX200-7) / 40 – 46kPa (ZX210LC-7)
  • Arm length: 2.42 – 2.91m
  • Max. digging reach: 9,430 – 9,920mm
  • Max. digging depth: 6,180 – 6,670mm
  • Max. dumping height: 6,830 – 7,180mm
  • Undercarriage length: 4,160mm (ZX200-7) / 4,450mm (ZX210LC-7)
  • Undercarriage width: 2,790mm (ZX200-7) / 2,990mm (ZX210LC-7)
  • Overall width of upperstructure: 2,700mm (ZX200-7) / 2,700mm (ZX210LC-7)
  • Overall height of cab: 3,120mm (ZX200-7) / 3,120mm (ZX210LC-7)
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX225US-5

The Hitachi ZX225-5 is designed to achieve greater performance on a wide variety of job sites. Engineering of this machine includes the TRIAS system which ensures a higher level of reliability and helps to increase productivity while maintaining operational efficiency. This machine is factory fitted with ConSite OIL monitoring technology which provides that extra level of maintenance security. You can be confident with the performance, power and productivity of the ZX225US-5 and the ZX225USLC-5 in getting the job done.

  • 122kw Engine Rated Power
  • 0.80 - 1.10m3 Bucket Capacity
  • 23,800/24,300kg Operating Weight
Medium Excavator / ZX225US-5
Model: Isuzu AM-4HK1X
EU Stage IIIB / EPA Tier 4 Interim emission certified
Type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment: Muffler filter (DPF)
Air filter double elements, dry type with restriction indicator
Pre-cleaner, maintenance free
Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 3 variable displacement axial piston pumps (2x 212L/min + 1x 189L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame, ultra short rear tail
  • Counterweight, 6,990kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, long crawler
  • Track undercover
  • Track guard, 1
  • Shoes, triple grouser 600mm, bolt on provision
  • Travel alarm
  • 5.68m monoblock boom
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 2.91m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, right lever
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX225USLC-7

The ZX225USLC-7 medium excavator offers outstanding versatility to work on a variety of job sites, and enhanced comfort and safety features that give operators the power to perform productively and with ease.

  • 128.4kw Engine Rated Power
  • 0.51 – 1.20m3 Bucket Capacity
  • 25,000 – 27,700kg Operating Weight
Medium Excavator / ZX225USLC-7
  • Engine Model: Isuzu 4HK1X
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled,cooled EGR
  • After-treatment:DOC and CSF and SCR system
  • No. of cylinders: 4
  • Rated power ISO 14396: 128.4 kW at 2 000 min-1
  • Maximum torque: 670 Nm at 1 600 at min-1
  • Main pumps: 3 variable displacement axial piston pumps
  • Maximum oil flow main pump:2 x 212 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 33.7 L/min
  • Bucket digging force ISO: 158 kN (2.42 m) / 158 kN (2.91 m)
  • Arm crowd force ISO: 140 kN (2.42 m) / 114 kN (2.91 m)
  • Shoe type: Triple grouser
  • Shoe width: 600 – 800mm
  • Arm length: 2.42 m – 2.91 m
  • Monoblock weight: 25,500kg – 26,200kg (ZX225USLC-7) / 27,500kg – 28,100kg (ZX225USLC-7 with blade)
  • Monoblock pressure: 41.0 – 53.0kPa (ZX225USLC-7) / 44 – 57kPa (ZX225USLC-7 with blade)
  • Arm length: 2.42m – 2.91m
  • Max. digging reach: 9,620mm – 10,110mm
  • Max. digging depth: 6,120mm – 6,610mm
  • Max. dumping height: 7,870mm – 8,290mm
  • Undercarriage length: 4,460mm
  • Undercarriage width: 2,990mm
  • Overall width of upperstructure: 2,900mm
  • Overall height of cab: 3,140mm
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX250-5/ZX260LC-5

Hitachi’s improved ZX250-5 and ZX260LC-5 deliver enhanced performance, productivity, comfort, durability and reliability. These machines provide fleet owners with the highest-quality construction excavators. Engineered for fuel efficiency while at the same time delivering greater power and increased productivity in the most challenging conditions. Fitted with TRIAS hydraulics and designed with operator safety in mind, these machines offer a user-friendly work space with significantly reduced fuel consumption. Also with ConSite OIL monitoring technology, machine inspection and maintenance has never been so easy, ensuring the job is completed on time, on budget and to a high standard every time.

  • 132kw Engine Rated Power
  • 0.80 - 1.40m3 Bucket Capacity
  • 24,700/25,400kg Operating Weight
Medium Excavator / ZX250-5/ZX260LC-5
Model: Isuzu AM-4HK1X
EU Stage IIIB / EPA Tier 4 Interim emission certified
Type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment: Muffler filter (DPF)
Air filter double elements, dry type with restriction indicator
Pre-cleaner, maintenance free
Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 3 variable displacement axial piston pumps (2x 212L/min + 1x 189L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame, ultra short rear tail
  • Counterweight, extra heavy, 6,200kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, standard length
  • Track undercover
  • Track guard, 1
  • Shoes, triple grouser 600mm
  • Travel alarm
  • 6.00m monoblock boom, heavy duty
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 2.96m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • Quick hitch piping provision
  • ROPS certified cab: All-weather sound suppressed, top and front bracket
  • Glasses: Front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, right lever
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX250-7/ZX260LC-7

You can count on the highest quality, the ultimate in operating comfort, exceptional safety and reduced running costs with the new Hitachi ZX250-7 & ZX260-7 medium excavator. This versatile model is suitable for a wide range of tasks. Special application versions can also be used for specific tasks, such as slope finishing and dredging, and low-level demolition.

  • 140kw Engine Rated Power
  • 0.40 – 1.40m3 Bucket Capacity
  • 25,900 – 27,300kg Operating Weight
Medium Excavator / ZX250-7/ZX260LC-7
  • Engine Model: Isuzu 4HK1X
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled,cooled EGR
  • After-treatment:DOC and CSF and SCR system
  • No. of cylinders: 4
  • Rated power ISO 14396: 140 kW at 2 000 min-1
  • Maximum torque: 676 Nm at 1 800 at min-1
  • Main pumps: 3 variable displacement axial piston pumps
  • Maximum oil flow main pump:2 x 224 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 35.5 L/min
  • Bucket digging force ISO: 188 kN (2.50 m) / 188 kN (2.96 m)
  • Arm crowd force ISO: 156 kN (2.50 m) / 131 kN (2.96 m)
  • Shoe type: Triple grouser
  • Shoe width: 600 – 800mm
  • Arm length: 2.50 m – 2.96 m
  • Monoblock weight: 25,900kg – 26,500kg
  • Monoblock pressure: 45.0 – 58.9kPa (ZX250-7) / 40.6 – 53.0kPa (ZX260-7)
  • Arm length: 2.50m – 2.96m
  • Max. digging reach: 9,880mm – 10,290mm
  • Max. digging depth: 6,500mm – 6,960mm
  • Max. dumping height: 6,990mm – 7,200mm
  • Undercarriage length: 4,260mm (ZX250-7) / 4,640mm (ZX260-7)
  • Undercarriage width: 2,990mm (ZX250-7) / 3,190mm (ZX260-7)
  • Overall width of upperstructure: 2,870mm (ZX250-7) / 2,870mm (ZX260-7)
  • Overall height of cab: 3,190mm (ZX250-7) / 3,190mm (ZX260-7)
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX290LC-5

Hitachi’s ZX290LC-5 was designed for superior performance, increased productivity and a higher level of operator comfort. Fitted with TRIAS hydraulics with added fuel efficiency, this high-quality machine works harder even in the most challenging conditions. Hitachi’s ZX290LC-5 is one of the larger-sized medium construction excavators and provides immense force and power, responding to skilled operation with agility and precision. Fitted with ConSite OIL technology, supporting preventive maintenance procedures and allowing the owner to remotely monitor and manage machine condition and operational hours.

  • 140kw Engine Rated Power
  • 1.00 - 1.62m3 Bucket Capacity
  • 28,900kg Operating Weight
Medium Excavator / ZX290LC-5
  • Model: Isuzu AL-4HK1X
  • EU Stage IIIB / EPA Tier 4 Interim emission certified
  • Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • Aftertreatment: Muffler filter (DPF)
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 3 variable displacement axial piston pumps (2x 236L/min + 1x 210L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame
  • Counterweight, heavy, 6,200kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, long crawler
  • Track undercover
  • Track guard, 3
  • Shoes, triple grouser 600mm
  • Travel alarm
  • 6.20m monoblock boom, heavy duty
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 3.11m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, right lever
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX300LC-5

With reliable performance and impressive fuel economy, the ZX300LC-5 is the ideal choice. Experience the smooth function, high productivity and enjoy a higher level of operator comfort. You’ll find the ZX300LC-5 out-performs in the most challenging conditions. Benefit from enhanced power, torque and speed while also experiencing an increased level of comfort and user-friendly operational functionality. With HIOS hydraulic system helping to increase fuel efficiency, productivity and yield power.

  • 171kw Engine Rated Power
  • 1.0 - 1.6m3 Bucket Capacity
  • 28,900kg Operating Weight
Medium Excavator / ZX300LC-5
  • Model: 6 cylinder Isuzu GH – 6HK1X
  • EU Stage III / EPA Tier 3 emission certified
  • Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 2 variable displacement axial main piston pumps (2x 236L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Side view camera
OPG level II top guard
  • Track frame, long crawler
  • Track undercover
  • Track guard, 3
  • Shoes, triple grouser 600mm
  • Travel alarm
  • 6.20m monoblock boom, heavy duty
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 3.11m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, Right foot pedal
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX345USLC-7H

You’ll be able to work where others can’t with the powerful and easy-to-maneuver, ultrashort Hitachi ZX345USLC-7. This workhorse provides fuel-efficient performance with three work modes and gives you the fastest cycle times in the industry.

  • 197kw Engine Rated Power
  • 1.00-1.62m3 Bucket Capacity
  • 35 900 - 36 000kg Operating Weight
Medium Excavator / ZX345USLC-7H
  • Engine Model: Isuzu 6HK1X
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • After-treatment: DOC+CSF+SCR system
  • No. of cylinders: 6
  • Rated power ISO 14396: 197 kW at 1,900 at min-1
  • Maximum torque: 1,050 Nm at 1 500 at min-1
  • Main pumps: 3 variable displacement axial piston pumps
  • Maximum oil flow main pump: 2 x 236 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 34.7 L/min
  • Bucket digging force ISO:  202 kN
  • Arm crowd force ISO: 144kN
  • Shoe type: Triple grouser
  • Shoe width: 600 – 800mm
  • Arm length: 3.11 – 3.76m
  • Monoblock weight: 34,900kg – 36,000kg
  • Monoblock pressure: 50.4 – 65.5kPa
  • Arm length: 3.11 – 3.76m
  • Max. digging reach: 10,900 – 11,460mm
  • Max. digging depth: 6,920 – 7,570mm
  • Max. dumping height: 8,380 – 8,670mm
  • Undercarriage length: 4,940mm
  • Undercarriage width: 3,190mm
  • Overall width of upperstructure: 3,050mm
  • Overall height of cab: 3,150mm
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX350-5/ZX360LC-5

Experience a higher level of performance, productivity and comfort with the Hitachi ZX350-5 and ZX360LC-5. The ideal choice for your projects, no matter how challenging the conditions. The ZX350-5 and ZX360LC-5 benefit from enhanced power, torque and speed while also providing operators with increased comfort and user-friendly functionality. TRIAS hydraulics help to increase fuel efficiency while maintaining a higher level of productivity and yield power. Consite OIL monitoring technology, is one of many preventative maintenance features included to ensure minimal downtime and superior machine performance every time.

  • 202kw Engine Rated Power
  • 1.15-1.86m3 Bucket Capacity
  • 32,700 / 33,400kg Operating Weight
Medium Excavator / ZX350-5/ZX360LC-5
  • Model: Isuzu AL-6HK1X
  • EU Stage IIIB / EPA Tier 4 Interim emission certified
  • Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: variable geometry turbocharged, intercooled, cooled EGR
  • Aftertreatment: muffler filter (DPF)
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 3 variable displacement axial piston pumps (2x 288L/min + 1x 260L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Pilot accumulator
  • Auto power lift
  • Overload alarm
  • D-section revolving frame
  • Counterweight, heavy, 6,900kg
  • Rear view camera
  • Upper structure undercover
  • Skid-resistant plates and handrail
  • Track frame, standard length
  • Track undercover
  • Track guard, 3
  • Shoes, triple grouser 600mm
  • Travel alarm
  • 6.40m monoblock boom, heavy duty
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 3.20m arm, lower reinforced
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • Quick hitch piping provision
  • ROPS certified cab: all-weather sound suppressed, top and front bracket
  • Glasses: front upper windshield: laminated, others: tempered
  • Overhead window, polycarbonate
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Auxiliary function, proportional control, Right foot pedal
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX360LC-7/ZX360LCH-7

Exceptionally efficient and versatile, the new ZX360LC-7 & ZX360LCH-7 will enable you to reduce your running costs and increase profits. Thanks to the refined design of the cab, it gives you the power to perform productively, with ease and reduced fatigue.

  • 210kw Engine Rated Power
  • 1.15-1.86m3 Bucket Capacity
  • 34 600 / 36 400kg Operating Weight
Medium Excavator / ZX360LC-7/ZX360LCH-7
  • Engine Model: Isuzu 6HK1X
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • After-treatment: DOC+CSF+SCR system
  • No. of cylinders: 6
  • Rated power ISO 14396: 210 kW at 1,900 at min-1
  • Maximum torque: 1,080 Nm at 1 500 at min-1
  • Main pumps: 3 variable displacement axial piston pumps
  • Maximum oil flow main pump: 2 x 288 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 36.8 L/min
  • Bucket digging force ISO:  246 kN (3.20 m) / 246kN (4.00 m)
  • Arm crowd force ISO: 185kN (3.20 m) / 185kN (4.00 m)
  • Shoe type: Triple grouser
  • Shoe width: 600 – 800mm
  • Arm length: 2.67 – 4.00m
  • Monoblock weight: 34,600kg – 35,800kg (ZX360LC-7) / 36,400kg – 37,200kg (ZX360LCH-7)
  • Monoblock pressure: 50.0 – 65.6kPa (ZX360LC-7) / 52.1 – 68.1Pa (ZX360LCH-7)
  • Arm length: 3.20 – 4.00m
  • Max. digging reach: 11,100 – 11,860mm
  • Max. digging depth: 7,380 – 8,180mm
  • Max. dumping height: 7,240 – 7,630mm
  • Undercarriage length: 4,950mm
  • Undercarriage width: 3,190mm
  • Overall width of upperstructure: 2,990mm
  • Overall height of cab: 3,320mm
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX490LCH-5

Reliable performance, impressive fuel economy, swift front movement and easy operation are key benefits of the new Hitachi ZX490LCH-5 excavator. Operators will experience the latest in Hitachi technology and expertise, including an optimised hydraulic system and engine. The ZX490LCH-5 is an extremely powerful machine, providing greater performance and durability with reduced fuel consumption. Consite OIL technology allows for remote monitoring of machine condition, to reduce maintenance frequency and extend the machines overall lifespan.

  • 257kw Engine Rated Power
  • 1.9 - 2.5m3 Bucket Capacity
  • 49,000kg Operating Weight
Medium Excavator / ZX490LCH-5
  • Model: Isuzu GH-6UZ1X
  • EU Stage IIIA / EPA Tier 3 equivalent
  • Type: 4-cycle water-cooled, direct injection
  • Aspiration: turbocharged, intercooled
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (1) and upper structure (1)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 2 variable displacement axial piston pumps (2x 400L/min)
  • Auxiliary dual flow piping
  • Work mode selector, adjustable flow rate and pressure
  • Auto power lift
  • Boom mode selector
  • D-section revolving frame
  • Counterweight, 9,800kg
  • Rear view camera
  • Upper structure undercover, heavy duty
  • Skid-resistant plates and handrail
  • Side walk, cab side
  • Track frame, long crawler, heavy duty, variable gauge
  • Track undercover
  • Track guard, full length
  • Shoes, triple grouser 600mm
  • Travel alarm
  • 7.00m monoblock boom, heavy duty
  • Boom cylinders, hose rupture valve
  • Arm cylinder, hose rupture valve
  • 3.40m arm, heavy duty
  • Bucket cylinder
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • ROPS certified cab: all-weather sound suppressed
  • OPG level II top guard
  • OPG level II guard, front lower
  • Glasses: front upper windshield: laminated, others: tempered
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX490LCH-7

The ZX490-7 large excavator offers exceptional reliability, efficiency and productivity, enabling you to increase your profits and reduce running costs. The Stage-V compliant model has an industry-leading cab with first-class comfort and safety features.

  • 296kw Engine Rated Power
  • 2.1 - 2.5m3 Bucket Capacity
  • 50,400 - 52,200kg Operating Weight
Medium Excavator / ZX490LCH-7
  • Engine Model: Isuzu 6WG1
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled,cooled EGR
  • After-treatment:DOC and CSF and SCR system
  • No. of cylinders: 6
  • Rated power ISO 14396: 296 kW at 1 800 min-1
  • Maximum torque: 2 050 Nm at 1 300 min-1
  • Main pumps: 2 variable displacement axial piston pumps
  • Maximum oil flow main pump: 2 x 385 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 30 L/min
  • Bucket digging force ISO: 300 kN / 302 kN
  • Arm crowd force ISO: 225 kN / 265 kN
  • Shoe type: Double / Triple grouser
  • Shoe width: 600 mm / 750 mm / 900 mm
  • Arm length: 2.9 m / 3.4 m
  • Operating weight: 50 400 – 52 100 kg
  • Ground pressure: 69 – 85 kPA
  • Arm length: 2.9 – 3.4 m
  • Max. digging reach: 10 750 – 11 990 mm
  • Max. digging depth: 6 130 – 7 700 mm
  • Max. dumping height: 7 440 – 7 720 mm
  • Undercarriage length: 5 470 mm
  • Undercarriage width: extended 3 490 mm / 3 640 mm/ 3 790 mm
  • Undercarriage width: retracted 2 990 mm / 3 140 mm / 3 290 mm
  • Overall width of upperstructure: 3 480 mm
  • Overall height of cab: 3 360 mm
  • Overall width: 3 810 mm
  • Global E service satellite communication
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX690LCH-5

The Hitachi ZX690LCH-5 has been engineered for reliability, performance, fuel economy, swift front movement, operator comfort and ease of operation. Experience the latest in Hitachi technology and expertise including an optimised hydraulic system and engine. The ZX690LCH-5 features low fuel consumption, high durability and exceptional operator comfort, all of which serve to ensure lower running costs. This machine is now fitted with ConSite OIL technology, which means owners can monitor machine condition and operational performance in real time. Get high quality, reliability and performance with a Hitachi ZX690LCH-5 excavator.

  • 345kw Engine Rated Power
  • 2.9 - 4.0m3 Bucket Capacity
  • 69,100kg Operating Weight
Medium Excavator / ZX690LCH-5
  • Model: Isuzu GH-6WG1X
  • EU Stage IIIA / EPA Tier 3 equivalent
  • Type: 4-cycle water-cooled, direct injection
  • Aspiration: turbocharged, intercooled
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (2) and upper structure (2)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 2 variable displacement axial piston pumps (2x 489L/min)
  • Work mode selector, adjustable flow rate and pressure
  • Auto power lift
  • Boom mode selector
  • D-section revolving frame
  • Counterweight, 10,400kg
  • Rear view camera
  • Upper structure undercover, heavy duty
  • Skid-resistant plates and handrail
  • Side walk, cab side
  • Track frame, long crawler, heavy duty
  • Track guard, full length
  • Shoes, triple grouser 650mm
  • Travel alarm
  • 6.80m monoblock boom, BE
  • Boom cylinders
  • Arm cylinder
  • 2.90m arm, BE
  • Bucket cylinder, BE
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • H/R cab: all-weather sound suppressed
  • OPG level II top guard
  • OPG level II guard, front lower
  • Glasses: front upper windshield: laminated, others: tempered
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • Global E service satellite communication
  • Auto-greasing, excluding bucket and link
  • Electrical Drive Auto Lubrication Device (Pall Type)
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX690LCH-7

The exceptional reliability and efficiency of the ZX690-7 large excavator will increase the productivity and profitability of your mining or quarrying operation. Its redesigned, state-of-the-art cab is the perfect working environment for the most remote locations.

  • 348kw Engine Rated Power
  • 2.9 - 4.0m3 Bucket Capacity
  • 69,400 - 71,400kg Operating Weight
Medium Excavator / ZX690LCH-7
  • Engine Model: Isuzu 6WG1
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • After-treatment:DOC and CSF and SCR system
  • No. of cylinders: 6
  • Rated power ISO 14396: 348 kW at 1 800 min-1
  • Maximum torque: 2 050 Nm at 1 300 min-1
  • Main pumps: 2 variable displacement axial piston pumps
  • Maximum oil flow main pump: 2 x 489 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 50 L/min
  • Bucket digging force ISO: 324 kN / 369 kN
  • Arm crowd force ISO: 255 kN / 306 kN
  • Shoe type: Double grouser
  • Shoe width: 650 mm / 750 mm / 900 mm
  • Arm length: 2.9 m / 3.6 m
  • Operating weight: 69 400 – 71 400 kg
  • Ground pressure: 77 – 105 kPA
  • Arm length: 2.9 – 3.6 m
  • Max. digging reach: 11 800 – 13 280 mm
  • Max. digging depth: 7 120 – 8 560 mm
  • Max. dumping height: 7 330 – 8 020 mm
  • Undercarriage length: 5 840 mm
  • Undercarriage width: extended 3 950 mm / 4 050 mm / 4 200 mm
  • Undercarriage width: retracted 3 480 mm / 3 580 mm / 3 730 mm
  • Overall width of upperstructure: 4 090 mm
  • Overall height of cab: 3 660 mm
  • Overall width: 4 360 mm
  • Global E service satellite communication
  • Auto-greasing, excluding bucket and link
  • Electrical Drive Auto Lubrication Device (Pall Type)
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX890LCH-5

The ZX890LCH-5 is engineered to provide the highest performing most powerful and reliable Hitachi mid-sized excavator, with impressive fuel economy, swift front movement and easy operation. Experience the latest in Hitachi technology in the ZX890LCH-5, with optimised hydraulics system and engine. The key benefits of this high quality machine include, low fuel consumption, high durability and exceptional operator comfort, all of which serve to ensure lower overall running costs.

  • 377kw Engine Rated Power
  • 3.5 - 5.0m3 Bucket Capacity
  • 85,100kg Operating Weight
Medium Excavator / ZX890LCH-5
  • Model: Isuzu GH-6WG1X
  • EU Stage IIIA / EPA Tier 3 equivalent
  • Type: 4-cycle water-cooled, direct injection
  • Aspiration: turbocharged, intercooled
  • Air filter double elements, dry type with restriction indicator
  • Pre-cleaner, maintenance free
  • Auto shut-down control
  • Battery disconnect switch, ISO compliance
  • Work lights, boom (2) and upper structure (2)
  • Additional work lights on cab, front (2) and rear (1)
  • Rotating beacon provision
  • 12V power outlet
  • 2 variable displacement axial piston pumps (2x 556L/min)
  • Work mode selector, adjustable flow rate and pressure
  • Auto power lift
  • Boom mode selector
  • D-section revolving frame
  • Counterweight, 13,300kg
  • Rear view camera
  • Upper structure undercover, heavy duty
  • Skid-resistant plates and handrail
  • Side walk, cab side
  • Track frame, long crawler, heavy duty
  • Track guard, full length
  • Shoes, triple grouser 650mm
  • Travel alarm
  • 7.10m monoblock boom, BE
  • Boom cylinders
  • Arm cylinder
  • 2.95m arm, BE
  • Bucket cylinder, BE
  • Bucket link A, cast
  • Bucket link B, heavy duty
  • H/R cab: all-weather sound suppressed
  • OPG level II top guard
  • OPG level II guard, front lower
  • Glasses: front upper windshield: laminated, others: tempered
  • Auto air conditioner
  • Air suspension seat with headrest, fabric
  • Retractable seat belt, 50mm
  • Short wrist control levers
  • Level indicator
  • AM/FM radio and AUX terminal for digital audio player
  • LCD multi function colour monitoring system
  • Windshield washers and wipers, front
  • Global E service satellite communication
  • Auto-greasing, excluding bucket and link
  • Electrical Drive Auto Lubrication Device (Pall Type)
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Medium Excavator /

ZX890LCH-7

The ZX890-7 large excavator has been designed to increase the productivity and profitability of your mining or quarrying operation, thanks to its exceptional reliability and efficiency. Its industry-leading cab offers the ultimate in comfort and safety, with excellent visibility of the job site.

  • 382kw Engine Rated Power
  • 3.5 - 5.0m3 Bucket Capacity
  • 84 600 – 87 500kg Operating Weight
Medium Excavator / ZX890LCH-7
  • Engine Model: Isuzu 6WG1
  • Engine Type: 4-cycle water-cooled, common rail direct injection
  • Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
  • After-treatment:DOC and CSF and SCR system
  • No. of cylinders: 6
  • Rated power ISO 14396: 382 kW at 1 800 min-1
  • Maximum torque: 2 250 Nm at 1 300 min-1
  • Main pumps: 2 variable displacement axial piston pumps
  • Maximum oil flow main pump: 2 x 556 L/min
  • Pilot pump: 1 gear pump
  • Maximum oil flow pilot pump: 50 L/min
  • Bucket digging force ISO: 402 kN / 472 kN
  • Arm crowd force ISO: 324 kN / 394 kN
  • Shoe type: Double grouser
  • Shoe width: 600 mm / 650 mm / 750 mm
  • Arm length: 2.95 m / 3.7 m
  • Operating weight: 85 100 – 86 600 kg
  • Ground pressure: 101 – 117 kPA
  • Arm length: 2.95 – 3.7 m
  • Max. digging reach: 12 340 mm / 14 100 mm
  • Max. digging depth: 7 140 – 8 870 mm
  • Max. dumping height: 8 130 – 9 080 mm
  • Undercarriage length: 6 360 mm
  • Undercarriage width: extended 4 100 mm / 4 200 mm
  • Undercarriage width: retracted 3 480 mm / 3 580 mm
  • Overall width of upperstructure: 4 120 mm
  • Overall height of cab: 3 800 mm
  • Overall width: 4 450 mm
  • Global E service satellite communication
  • Auto-greasing, excluding bucket and link
  • Electrical Drive Auto Lubrication Device (Pall Type)
  • Tool kit
  • Operator manual
  • ConSite OIL Monitoring – 24 hours, 7 days* conditions apply
  • ConSite SHOT Daily inspection app and Web Portal
  • Owners Site Machine Telemetry Portal
  • ConSite Operational Reports and emergency notification e-mail
  • ConSite Pocket – Remote Monitoring app
Large Excavator /

EX1200-7

The EX1200-7 is one of Hitachi’s most compact backhoe excavators guaranteeing exceptional power and force for demanding jobs, while featuring a low weight and high mobility. This model has a larger backhoe bucket size and slightly higher operating weight than its predecessor. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 567kw Engine Rated Power
  • 7.0m3 Bucket Capacity
  • 117,000kg Operating Weight
Large Excavator / EX1200-7
Model: Cummins QSK23-C
Type: Water-cooled, 4-cycle, 6-cylinder in line, turbo-charged direct injection chamber type diesel engine.
Rated power SAE J1995, gross: 567 kW (760 HP) at 1 800 min-1 (rpm)
Rated power Net: 552 kW (740 HP) at 1,800 min-1 (rpm)
Piston displacement: 23.15 L
Fuel tank capacity: 1,470 L
Main pumps: 3 variable-displacement, swash plate type axial piston pumps
Maximum oil flow: 3 x 520 L/min
Pressure setting: 31.9 MPa (325 kgf/cm2)
Swing speed: 5.2 min-1 (rpm)
Maximum traction force: 707 kN (72 100 kgf)
Large Excavator /

EX2000-7

The EX2000-7 has been built to withstand the harshest mining conditions while delivering outstanding productivity and exceptional around-the-clock performance. Owners benefit from exceptional fuel efficiency, thanks to energy-efficient features including a new hydraulic circuit and work mode selection function.

  • 746 kWkw Engine Rated Power
  • 12-14m3 Bucket Capacity
  • 191 000 - 195 000kg Operating Weight
Large Excavator / EX2000-7
Engine model: Cummins QST30-C Tier 4 Final
Rated power ISO 14396: 746 kW (1 000 HP) at 1 800 min-1 (rpm)
Piston displacement: 30.5 L
Main pumps: 6 variable-displacement, axial piston pumps for front attachment, travel and swing
Pressure setting: 29.4 MPa (300 kgf/cm2
Maximum oil flow: 6 X 335 L/min
Loading Shovel ISO 7546 Heaped 2: 12.0 – 13.5 m3 : Material density (1,800 kg/m3 or less)
Backhoe ISO 7451: 2007: 12.0 – 13.5 m3 : Material density (1 800 kg/m3 or less)
Shoe type: Loading Shovel
Shoe width: 800 mm
Operating weight: 194 000 kg
Ground pressure: 187 kPa (1.90 kgf/cm3 )
Shoe type: Backhoe
Shoe width: 800 mm
Operating weight: 195 000 kg
Ground pressure: 188 kPa (1.91 kgf/cm3 )
Arm length: 8.3 m
Max. digging reach: 13 490 mm
Max. digging depth: 4 380 mm
Max. dumping height: 10 160 mm

Undercarriage width: 5 620 mm
Overall width of upper structure: 7 265 mm
Overall height of cab: 6 990 mm

Large Excavator /

EX2600-6

The EX2600-6 is one of Hitachi’s mid-sized backhoe excavators, guaranteeing exceptional power and force for demanding jobs, while featuring a low operating weight and high mobility. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 1,119kw Engine Rated Power
  • 17.0m3 Bucket Capacity
  • 254,000kg Operating Weight
Large Excavator / EX2600-6
Model: Cummins QSKTA50-CE
Emission Certification: U.S. EPA Tier2
Type: Water-cooled, 4-cycle, 16-cylinder, turbo-charged and after-cooled, direct injection chamber-type diesel engine
Rated power SAE J1995, gross: 1 119 kW (1 500 HP) at 1,800 min-1 (rpm)
Rated power Net: 1,069 kW (1 434 HP) at 1,800 min-1 (rpm)
Maximum torque: 6,570 Nm (670 kgf m) at 1,400 min-1 (rpm)
Piston displacement: 50.0 L
Bore and stroke: 159 mm x 159 mm
Starting system: 24 V electric motor
Batteries: 4 x 12 V , 4 x 220 AH
Cold starting: Ether aided
E-P Control (Computer-aided Engine-Pump Control system): Main pumps regulated by electric engine speed sensing control system
OHS (Optimum Hydraulic System): 6 main pumps and 3 valves system enable both independent and combined operations of all functions
FPS (Fuel-saving Pump System): FPS minimizes energy loss with superior performance in fine control
Main pumps: 6 variable-displacement, axial piston pumps for front attachment, travel and swing
Max. oil flow: 4 X 375 L/min, 2 X 425 L/min
Pilot pump: 1 gear pump
Max. oil flow: 108 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 27.4 MPa (280 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 3.9 MPa ( 40 kgf/cm2)
Noise level: 72 dB(A) in the cab; on max. engine speed under no-load condition
Eye level height: 6,290 mm
Upper rollers: 3
Lower rollers: 8
Track shoes: 39
Maximum traction force: 1,330 kN (135,600 kgf)
Large Excavator /

EX2600-7

The EX2600-7 is one of Hitachi’s mid-sized backhoe excavators, guaranteeing exceptional power and force for demanding jobs, while featuring a low operating weight and high mobility. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 1,119kw Engine Rated Power
  • 17.0m3 Bucket Capacity
  • 256,000kg Operating Weight
Large Excavator / EX2600-7
Model: Cummins QSKTA50-CE
Emission Certification: U.S. EPA Tier 4 Final
Type: Water-cooled, 4-cycle, 16-cylinder turbo-charged and after-cooled, direct injection chamber-type diesel engine, urea SCR system, Fan clutch
Rated power ISO14396: 1,119 kW (1,520 PS) at 1,800 min-1 (rpm)
Maximum torque: 6,570 Nm (670 kgf m) at 1,400 min-1 (rpm)
Piston displacement: 50.0 L
Bore and stroke: 159 mm x 159 mm
Starting system: 24 V electric motor
Batteries: 4 x 12 V , 4 x 185 AH (20hr)
E-P Control (Computer-aided Engine-Pump Control system): Main pumps regulated by electric engine speed sensing control system
OHS (Optimum Hydraulic System): 6 main pumps and 3 valves system enable both independent and combined operations of all functions
FPS (Fuel-saving Pump System): FPS minimizes energy loss with superior performance in fine control
Main pumps: 6 variable-displacement, axial piston pumps for front attachment, travel and swing
Max. oil flow: 4 X 375 L/min, 2 X 425 L/min
Pilot pump: 1 gear pump
Max. oil flow: 108 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 27.4 MPa (280 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 4 MPa ( 41 kgf/cm2)
Noise level: 72 dB(A) in the cab; on max. engine speed under no-load condition
Eye level height: 6,290 mm
Upper rollers: 3
Lower rollers: 8
Track shoes: 39
Maximum traction force: 1,330 kN (135,600 kgf)
Gradeability: 58 %(30 degree) max.
Large Excavator /

EX3600-6

The EX3600-6 is one of Hitachi’s mid sized backhoe excavators, guaranteeing exceptional power and force for demanding jobs, while featuring a relatively low operating weight and high mobility. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 1,450kw Engine Rated Power
  • 22.0m3 Bucket Capacity
  • 359,000kg Operating Weight
Large Excavator / EX3600-6
Model: Cummins QSKTA60-CE
Type: Water-cooled, 4-cycle, 16-cylinder, turbo-charged and after-cooled, direct injection chamber-type diesel engine
Rated power DIN 6271,net: 1 450 kW (1 968 PS) at 1 800 min-1 (rpm)
Rated power SAE J1349,net: 1 450 kW (1 944 HP) at 1 800 min-1 (rpm)
Rated power SAE J1995, gross: 1 450 kW (1 944 HP) at 1 800 min-1 (rpm)
Maximum torque: 8 346 Nm (851 kgf m) at 1 500 min-1 (rpm)
Piston displacement: 60.0 L
Bore and stroke: 159 mm x 190 mm
Starting system: 24 V electric motor
Batteries: 4 x 12 V, 4 x 220 AH
Cold starting: Ether aided
E-P Control (Computer-aided Engine-Pump Control system): Main pumps regulated by electric engine-speed sensing control system
OHS (Optimum Hydraulic System): 8 main pumps and 4 valves system enable both independent and combined operations of all functions
FPS (Fuel-saving Pump System): FPS minimizes energy loss with superior performance in fine control.
Main pumps: 8 variable-displacement, axial piston pumps for front attachment, travel and swing
Main pumps Pressure setting: 29.4 MPa (300 kgf/cm2)
Main pumps Max. oil flow: 8 x 500 L/min
Pilot pump: 1 gear pump
Pilot pump Pressure setting: 4.4 MPa (45 kgf/cm2)
Pilot pump Max. oil flow: 110 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 29.4 MPa (300 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 4.4 MPa (45 kgf/cm2)
Shoe width: 1,270 mm
Upper rollers: 3
Lower rollers: 8
Track shoes: 38
Maximum traction force: 1,760 kN (179,500 kgf)
Large Excavator /

EX3600-7

The EX3600-7 is one of Hitachi’s mid sized backhoe excavators, guaranteeing exceptional power and force for demanding jobs, while featuring a relatively low operating weight and high mobility. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 1,450kw Engine Rated Power
  • 22.0m3 Bucket Capacity
  • 367,000kg Operating Weight
Large Excavator / EX3600-7
Model: Cummins QSKTA60-CE
Type: Water-cooled, 4-cycle, 16-cylinder turbo-charged and after-cooled, direct injection chamber-type diesel engine, urea SCR system
Rated power ISO14396 : 1,450 kW (1,971 PS) at 1,800 min-1 (rpm)
Maximum torque: 8,364 Nm at 1,500 min-1 (rpm)
Piston displacement: 60.0 L
Bore and stroke: 159 mm x 190 mm
Starting system: 24 V electric motor
Batteries: 4 x 12 V, 4 x 185 AH (20hr)
E-P Control (Computer-aided Engine-Pump Control system): Main pumps regulated by electric engine-speed sensing control system
OHS (Optimum Hydraulic System): 8 main pumps and 4 valves system enable both independent and combined operations of all functions
FPS (Fuel-saving Pump System): FPS minimises energy loss with superior performance in fine control.
Main pumps: 8 variable-displacement, axial piston pumps for front attachment, travel and swing
Main pumps Pressure setting: 29.4 MPa (300 kgf/cm2)
Main pumps Max. oil flow: 8 x 500 L/min
Pilot pump: 1 gear pump
Pilot pump Pressure setting: 4.0 MPa (41 kgf/cm2)
Pilot pump Max. oil flow: 110 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 29.4 MPa (300 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 4.0 MPa (41 kgf/cm2)
Shoe width: 1,270 mm
Upper rollers: 3
Lower rollers: 8
Track shoes: 38
Maximum traction force: 1,760 kN (179,500 kgf)
Gradeability: 58 % (30 degree) max.
Large Excavator /

EX5600-6

The EX5600-6 is one of Hitachi’s larger backhoe excavators, guaranteeing phenomenal power and force for incredibly demanding and challenging jobs. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 2x1,119kw Engine Rated Power
  • 34.0m3 Bucket Capacity
  • 533,000kg Operating Weight
Large Excavator / EX5600-6
Model: Cummins QSKTA50-CE
Type: Water-cooled, 4-cycle, 16-cylinder, turbo-charged and after-cooled, direct injection chamber-type diesel engine
Rated power SAE J1995, gross: 2 x 1,119 kW (2 x 1,500 HP) at 1,800 min-1 (rpm)
Rated power Net: 2 x 1,069 kW (2 x 1,434 HP) at 1,800 min-1 (rpm)
Maximum torque: 2 x 6,570 Nm (2 x 670 kgfm) at 1,400 min-1 (rpm)
Piston displacement: 2 x 50 L
Bore and stroke: 159 mm x 159 mm
Starting system: 24 V electric motor
Batteries: 6 x 12 V , 6 x 220 AH
Cold starting: Ether aided
E-P Control (Computer-aided Engine-Pump Control system): Main pumps regulated by electric engine speed sensing control system
OHS (Optimum Hydraulic System): 12 main pumps and 6 valves system enable both independent and combined operations of all functions
FPS (Fuel-saving Pump System): FPS minimizes energy loss with superior performance in fine control
Main pumps: 12 variable-displacement, axial piston pumps for front attachment, travel and swing
Pressure setting: 29.4 MPa (300 kgf/cm2)
Max. oil flow: 8 X 375 L/min, 4 X 425 L/min
Pilot pump: 2 gear pump
Pressure setting: 3.9 MPa (40 kgf/cm2)
Max. oil flow: 2 x 108 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 24.5 MPa (250 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 3.9 MPa (40 kgf/cm2)
Swing speed: 3.3 min-1 (rpm)
Noise level: 75 dB(A) in the cab; on max. engine speed under no-load condition
Eye level height: 7,640 mm
Upper rollers: 3
Lower rollers: 7
Track shoes: 39
Maximum traction force: 2,230 kN (227,000 kgf)
Large Excavator /

EX5600-7

The EX5600-7 is one of Hitachi’s larger backhoe excavators, guaranteeing phenomenal power and force for incredibly demanding and challenging jobs. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 2x1,119kw Engine Rated Power
  • 34.0m3 Bucket Capacity
  • 553,000kg Operating Weight
Large Excavator / EX5600-7
Model: Cummins QSKTA50-CE(FCO,T4F)
Type: Water-cooled, 4-cycle, 16-cylinder turbo-charged and after-cooled, direct injection chamber-type diesel engine, Fan clutch
Rated power ISO14396: 2 x 1,119 kW (1 520 PS) at 1,800 min-1 (rpm)
Maximum torque: 2 x 6,570 N.m (670 kgf.m) at 1,400 min-1 (rpm)
Piston displacement: 2 x 50 L
Bore and stroke: 159 mm x 159 mm
Starting system: 24 V electric motor
Batteries: 6 x 12 V, 6 x 185 AH (20hr)
E-P Control (Computer-aided Engine-Pump Control system): Main pumps regulated by electric engine speed sensing control system
OHS (Optimum Hydraulic System): 12 main pumps and 6 valves system enable both independent and combined operations of all functions
FPS (Fuel-saving Pump System): FPS minimizes energy loss with superior performance in fine control
Main pumps: 12 variable-displacement, axial piston pumps for front attachment, travel and swing
Pressure setting: 29.4 MPa (300 kgf/cm2)
Max. oil flow: 8 X 375 L/min, 4 X 425 L/min
Pilot pump: 2 gear pump
Max. oil flow: 2 x 108 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 24.5 MPa (250 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 4.0 MPa (41 kgf/cm2)
Swing speed: 3.3 min-1 (rpm)
Noise level: 75 dB(A) in the cab; on max. engine speed under no-load condition
Eye level height: 7,640 mm
Upper rollers: 3
Lower rollers: 7
Track shoes: 39
Maximum traction force: 2,230 kN (227,000 kgf)
Gradeability: 58 %(30 degree) max.
Large Excavator /

EX8000-6

The EX8000-6 is Hitachi’s largest standard backhoe excavator, guaranteeing the utmost power and force for incredibly demanding and challenging jobs. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 2x1,450kw Engine Rated Power
  • 45.0m3 Bucket Capacity
  • 837,000kg Operating Weight
Large Excavator / EX8000-6
Model: Cummins QSKTA60-CE
Type: Water-cooled, 4-cycle,16-cylinder, turbo-charged and after-cooled, direct injection chamber-type diesel engine
Rated power SAE J1995, gross: 2 x 1 450 kW (2 x 1 940 HP) at 1 800 min-1 (rpm)
Rated power Net: 2 x 1,450 kW (2 x 1 940 HP) at 1,800 min-1 (rpm)
Maximum torque: 2 x 8,364 Nm (2 x 853 kgf m) at 1,500 min-1 (rpm)
Piston displacement: 2 x 60 L
Bore and stroke: 159 mm X 190 mm
Starting system: 24 V electric motor
Batteries: 8 x 12 V , 8 x 220 AH
Cold starting: Ether aided
Main pumps: 16 variable-displacement, axial piston pumps for front attachment, travel and swing
Main pumps Max. oil flow: 16 x 500 L/min
Pilot pump: 2 gear pump
Pilot pump Max. oil flow: 2 x 110 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 29.4 MPa (300 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 4.4 MPa (45 kgf/cm2)
Noise level: 75 dB(A) in the cab; on max. engine speed under no-load condition.
Eye level height: 9,000 mm
Upper rollers: 3
Lower rollers: 7
Track shoes: 39
Maximum traction force: 3,000 kN (306 000 kgf)
Large Excavator /

EX8000-7

The EX8000-7 is Hitachi’s largest standard backhoe excavator, guaranteeing the utmost power and force for incredibly demanding and challenging jobs. This sophisticated, powerful and efficient piece of machinery will complete any excavating task with proficiency and ease.

  • 2x1,450kw Engine Rated Power
  • 43.0-48.0m3 Bucket Capacity
  • 839,000kg Operating Weight
Large Excavator / EX8000-7
Model: Cummins QSKTA60-CE
Type: Water-cooled, 4-cycle,16-cylinder, turbo-charged and after-cooled, direct injection chamber-type diesel engine
Rated power ISO14396: 2 x 1,450 kW (1,944 HP) at 1,800 min-1 (rpm)
Maximum torque: 2 x 8,364 Nm at 1,500 min-1 (rpm)
Piston displacement: 2 x 60 L
Bore and stroke: 159 mm X 190 mm
Starting system: 24 V electric motor
Batteries: 8 x 12 V , 8 x 185 AH (20 hr)
Main pumps: 16 variable-displacement, axial piston pumps for front attachment, travel and swing
Main pumps Max. oil flow: 16 x 500 L/min
Pilot pump: 2 gear pump
Pilot pump Max. oil flow: 2 x 110 L/min
Implement circuit: 29.4 MPa (300 kgf/cm2)
Swing circuit: 29.4 MPa (300 kgf/cm2)
Travel circuit: 29.4 MPa (300 kgf/cm2)
Pilot circuit: 4.0 MPa (41 kgf/cm2)
Noise level: 75 dB(A) in the cab; on max. engine speed under no-load condition.
Eye level height: 9,000 mm
Upper rollers: 3
Lower rollers: 7
Track shoes: 39
Wheeled Excavator /

ZX140W-5

The design of the new Hitachi ZAXIS 140W medium excavator is inspired by one aim – empower your vision. It delivers on five key levels: performance, productivity, comfort, durability and reliability. We recognise that fleet owners require high-quality, efficient machines that can work effectively, even in challenging conditions.

  • 90.2kw Engine rated power
  • 0.45 - 0.59m3 Bucket Capacity
  • 15,500 - 16,900kg Operating Weight
Wheeled Excavator / ZX140W-5
Model: Isuzu AM-4JJ1X
Type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
Number of Cylinders: 4
Maximum Torque: 406 Nm at 1 800 min-1
Piston Displacement: 2.999 L
Bore and Stroke: 95.4 mm x 104.9 mm
Batteries: 2 x 12 V / 93 Ah
Main Pumps: 2 variable displacement axial piston pumps
Main Pump Maximum Oil Flow: 2 x 117 L/min
Pilot Pump: 1 gear pump
Pilot Pump Maximum Oil Flow: 30.1 L/min
Steering pump: 1 gear pump
Steering pump Maximum Oil Flow: 30.2 L / min
Hydraulic Motor Travel: 1 variable displacement axial piston motors
Hydraulic Motor Swing: 1 axial piston motor
Implement circuit: 34.3 MPa
Swing circuit: 32.4 MPa
Travel circuit: 34.3 MPa
Pilot circuit: 3.90 MPa
Power boost: 36.3 MPa
Fuel Tank: 250 L
Engine Coolant: 20 L
Engine Oil: 16 L
Swing Device: 6.20 L
Transmission: 2.50 L
Front differential gear: 9.10 L
Rear differential gear: 11.8 L
Hydraulic system: 180 L
Wheeled Excavator /

ZX170W-5

Suitable for use on any construction project, the new ZAXIS 170W can be equipped with several different kinds of attachments to complete a variety of tasks. Designed to offer enhanced power and speed, and reduced running costs, it will easily outperform other models in its class.

  • 122kw Engine Rated Power
  • 0.52 - 0.82m3 Bucket Capacity
  • 18,100 - 19,500kg Operating Weight
Wheeled Excavator / ZX170W-5
Model: Isuzu AM-4HK1X
Type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
No. of cylinders: 4
Maximum Torque: 655 Nm at 1 500 min-1
Piston Displacement: 5.193 L
Bore and Stroke: 115 mm x 125 mm
Batteries: 2 x 12 V / 93 Ah
Main pumps: 2 variable displacement axial piston pumps
Main pump Maximum oil flow: 2 x 157 L/min
Pilot pump: 1 gear pump
Pilot pump Maximum oil flow: 30 L/min
Steering pump: 1 gear pump
Steering pump Maximum oil flow: 28.6 L/ min
Implement circuit: 34.3 MPa
Swing circuit: 33.4 MPa
Travel circuit: 34.8 MPa
Pilot circuit: 3.90 MPa
Fuel tank: 290 L
Engine coolant: 25.0 L
Engine oil: 23.0 L
Swing device: 6.20 L
Transmission: 2.50 L
Front differential gear: 9.50 L
Rear differential gear: 14.0 L
Hydraulic system: 180 L
Built Tough

Humanising technology, global brand with a local presence

Our customers are at the heart of our machines. Our Built Tough video series explores and celebrates the diverse and rich stories behind the Orange Family.

Hero Machinery

Our Most Popular

From the mini range, mid-size workhorse to the hauling giants, you can always be sure to find your Hitachi.

ZX140W-5

A medium excavator designed for performance, productivity…

Learn more

ZX17U-5

Compact size and power, agile and efficient offering operators…

Learn more

ZX26U-5

The ZAXIS26U-5 is the epitome of agile and efficient thanks to...

Learn more

Use of cookies

This website stores cookies on your computer. These cookies are used to improve your website experience and provide more personalised services to you, both on this website and through other media. To find out more about the cookies we use, see our Privacy Policy. We won’t track your information when you visit our site.

Find a dealer

Search by location
Search by dealer name
It appears you're using an old version of Internet Explorer for safer and optimum browsing experience please upgrade your browser.
